Collection

The Collection feature in SOAR provides reactive, ScriptableObject-based collections like SoarList<T> and SoarDictionary<TKey, TValue>. These assets allow for the creation of shared, observable data structures that are easily managed and monitored. By implementing common interfaces like IList and IDictionary, they offer a familiar API and are fully compatible with LINQ, while additional events are triggered when items are added, removed, or updated.

Core Concepts

Collection<T> is the abstract base class providing the core functionality for all SOAR collections.

• Reactive Events: Collections notify subscribers when they are modified. Subscriptions can be made to events for adding, removing, clearing, or changing elements.
• Inspector Editing: The contents of a collection can be viewed and modified directly in the Unity Inspector, making the setup of initial data straightforward.
• Auto Reset Value: When enabled, the collection automatically reverts to its initial state when play mode ends. This is controlled by the autoResetValue field in the Inspector.
• Value Event Type: This setting determines when a value change event is raised:
  • ValueAssign: The event is raised every time a value is set, even if it's the same as the current value.
  • ValueChanged: The event is raised only if the new value is different from the current value.

Serialized Types

Due to Unity's serialization behavior, autoResetValue is most reliable with structs and primitive types. For class types, the initial state is a shallow copy. Modifying objects within the list will alter the initial state, which can lead to unexpected behavior upon reset.

SoarList<T>

SoarList<T> is an ordered collection of elements, similar to a standard List<T>. It implements IList<T> and IReadOnlyList<T>, providing familiar list operations like indexed access, Insert, and RemoveAt. SoarList<T> is useful when a reactive list is needed to share data between different parts of a game, such as a list of active power-ups or a sequence of waypoints.

SoarDictionary<TKey, TValue>

SoarDictionary<TKey, TValue> is a collection of key-value pairs, mirroring Dictionary<TKey, TValue>. It implements IDictionary<TKey, TValue> and IReadOnlyDictionary<TKey, TValue>, allowing for efficient key-based data retrieval and modification. It is ideal for scenarios like managing a player's inventory (where the key is an item ID and the value is the item object) or storing game settings.

Creating a Collection

SOAR includes pre-defined List types for common data types (e.g., IntList, StringList), which can be created from the Assets > Create > SOAR > Lists menu.

Assembly Definition Reference

These common types are defined in the Soar.Base.asmdef assembly. To use them, a reference to Soar.Base.asmdef must be added in the project’s assembly definition file.

To create a collection for a custom data type, a new class must be defined that inherits from SoarList<T> or SoarDictionary<TKey, TValue>.

Custom List Example

1. The custom data type must be marked as [Serializable].

   // File: MyItem.cs
   using System;

   [Serializable]
   public struct MyItem
   {
       public string itemName;
       public int itemID;
   }


2. A new class inheriting from SoarList<T> should be created.

   // File: MyItemList.cs
   using Soar;
   using Soar.Collections;
   using UnityEngine;

   [CreateAssetMenu(fileName = "MyItemList", menuName = MenuHelper.DefaultListMenu + "My Item List")]
   public class MyItemList : SoarList<MyItem> { }


3. Instances of MyItemList can now be created from the Assets > Create > SOAR > Lists > My Item List menu.

Custom Dictionary Example

Creating a custom dictionary follows the same pattern.

// File: StringStringDictionary.cs
using Soar;
using Soar.Collections;
using UnityEngine;

[CreateAssetMenu(fileName = "StringStringDictionary", menuName = MenuHelper.DefaultCollectionMenu + "String-String Dictionary")]
public class StringStringDictionary : SoarDictionary<string, string> { }

Subscribing to Changes

Changes to a collection can be observed by subscribing to its events. Subscriptions should always be disposed of when no longer needed to prevent memory leaks.

// File: CollectionMonitor.cs
using System;
using Soar.Collections;
using UnityEngine;

// Assuming an IntList asset has been created
public class CollectionMonitor : MonoBehaviour
{
    [SerializeField] private IntList targetList;
    private IDisposable addSubscription;
    private IDisposable removeSubscription;
    private IDisposable countSubscription;
    private IDisposable valueSubscription;

    private void Start()
    {
        if (targetList == null) return;

        // Subscribe to various events
        addSubscription = targetList.SubscribeOnAdd(OnItemAdded);
        removeSubscription = targetList.SubscribeOnRemove(OnItemRemoved);
        countSubscription = targetList.SubscribeToCount(OnCountChanged);
        valueSubscription = targetList.SubscribeToValues(OnValueChanged);

        Debug.Log($"Monitoring {targetList.name}. Initial count: {targetList.Count}");
    }

    private void OnDestroy()
    {
        // Dispose all subscriptions
        addSubscription?.Dispose();
        removeSubscription?.Dispose();
        countSubscription?.Dispose();
        valueSubscription?.Dispose();
    }

    private void OnItemAdded(int newItem)
    {
        Debug.Log($"Item added: {newItem}");
    }

    private void OnItemRemoved(int removedItem)
    {
        Debug.Log($"Item removed: {removedItem}");
    }

    private void OnCountChanged(int newCount)
    {
        Debug.Log($"Count changed to: {newCount}");
    }

    private void OnValueChanged(int index, int newValue)
    {
        Debug.Log($"Value at index {index} changed to: {newValue}");
    }
}

R3 Integration

If the SOAR_R3 scripting define symbol is active, SOAR collections integrate with the R3 library, unlocking powerful reactive programming capabilities.

Observable Streams

Both SoarList<T> and SoarDictionary<TKey, TValue> expose a rich set of Observe...() methods:

• ObserveAdd(): Emits the item that was added.
• ObserveRemove(): Emits the item that was removed.
• ObserveClear(): Emits a Unit notification when the collection's Clear() method is called.
• ObserveCount(): Emits the new Count of the collection whenever it changes.
• ObserveValues(): Emits a notification when an existing element's value is changed.
  • For SoarList<T>, this emits an IndexValuePair<T>.
  • For SoarDictionary<TKey, TValue>, this emits a KeyValuePair<TKey, TValue>.

SoarList<T> has additional streams for list-specific operations: - ObserveMove(): Emits a MovedValueDto<T> containing the value, old index, and new index. - ObserveInsert(): Emits an IndexValuePair<T> when an item is inserted at a specific index.

Async/Await Support

Every Observe...() method has a corresponding On...Async() or ...Async() counterpart that returns a ValueTask. This allows you to await the next specific change in a collection.

• OnAddAsync(): Awaits the next added item.
• OnRemoveAsync(): Awaits the next removed item.
• OnClearAsync(): Awaits the next Clear() operation.
• CountAsync(): Awaits the next change in the collection's Count.
• ValuesAsync(): Awaits the next change to an element's value.

For SoarList<T>: - OnMoveAsync(): Awaits the next move operation. - OnInsertAsync(): Awaits the next insert operation.

Example

// R3 Example
#if SOAR_R3
using R3;
using Soar.Collections;
using UnityEngine;

// Assuming an IntList asset has been created
public class R3CollectionMonitor : MonoBehaviour
{
    [SerializeField] private IntList targetList;

    private void OnEnable()
    {
        if (targetList == null) return;

        // Use R3 Observables for more expressive and manageable code
        targetList.ObserveAdd()
            .Subscribe(newItem => Debug.Log($"Item added: {newItem}"))
            .AddTo(this); // R3 extension for auto-disposal

        targetList.ObserveCount()
            .Subscribe(newCount => Debug.Log($"Count is now: {newCount}"))
            .AddTo(this);
    }
}
#endif

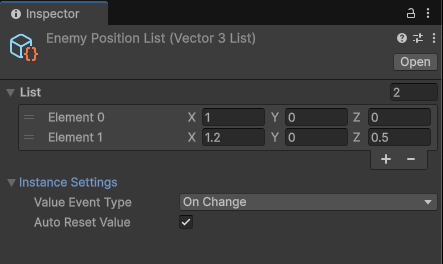

Editor Integration

The custom editor for Collection<T> and its derived classes provides a user-friendly interface in the Unity Inspector.

• Element List: The contents of the collection are displayed in a list format, allowing for direct editing of values.
• Instance Settings: A foldout section contains settings for the collection instance:
• Value Event Type: A dropdown to select between ValueAssign and ValueChanged.
• Auto Reset Value: A checkbox to enable or disable automatic reset of the collection's data when exiting Play Mode.

Lifecycle and Disposal

As derivatives of SoarCore, collections follow a managed lifecycle:

• Initialization: On game start or after a domain reload, the collection's current state is saved as its initial value.
• Resetting: If autoResetValue is true, the collection reverts to this initial state when play mode ends. The ResetValues() method can also be called manually at any time.
• Disposal: The Dispose() method is called automatically when the application quits, clearing all active subscriptions to prevent memory leaks.

Sample Usage

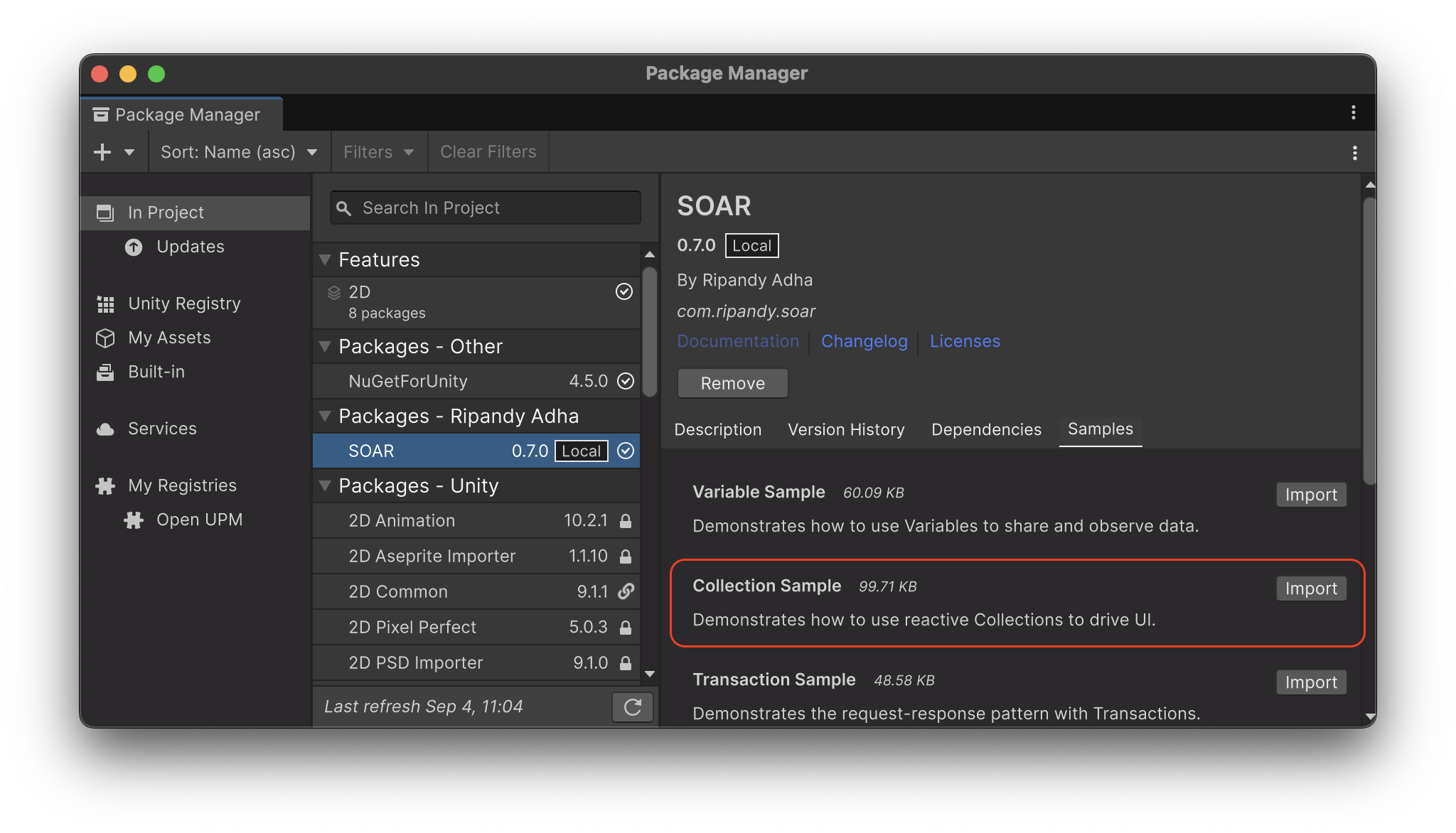

To test this feature, the relevant sample package can be imported from the Package Manager window.

The Collection Sample demonstrates how to use a SoarList<int> to drive a dynamic UI. It shows how to subscribe to add, remove, and value-changed events to automatically update the view when the collection is modified from another script.

For detailed setup and usage instructions, please refer to the README.md file inside the CollectionSamples folder after importing.

Value Objects

IndexValuePair<T>

A struct that holds the index and value of an element in a collection. This is used in the SubscribeToValues and ObserveInsert methods of a SoarList<T>.

MovedValueDto<T>

A struct that holds the value, old index, and new index of an element that has been moved in a SoarList<T>. This is used in the SubscribeOnMove and ObserveMove methods of a SoarList<T>.
