GameEvent

GameEvent is a core feature in SOAR that implements the publish-subscribe pattern using ScriptableObject assets. An event represents an occurrence within the program execution that requires a specific response. This allows for decoupled communication between different parts of an application, where an event can be published (raised) by one system and listened to by multiple other systems without them needing direct references to each other.

GameEvent (Parameterless)

The base GameEvent represents an event that does not carry any data.

Creating a GameEvent

Create a GameEvent asset from the Assets > Create > SOAR > Game Events > GameEvent menu.

Raising a GameEvent from a Script

To raise an event from a script, call the Raise() method on the GameEvent instance. All active subscribers will be notified.

// File: GameEventPublisherExample.cs
using Soar.Events;
using UnityEngine;

public class GameEventPublisherExample : MonoBehaviour
{
    [SerializeField] private GameEvent gameEvent;

    private void Update()
    {
        if (Input.GetKeyDown(KeyCode.Space))
        {
            gameEvent.Raise();
            Debug.Log($"Game Event {gameEvent.name} Raised.");
        }
    }
}

Subscribing to a GameEvent from a Script

To listen for an event, call the Subscribe() method with an Action to be executed when the event is raised. The Subscribe method returns an IDisposable which should be stored and disposed of when the listener no longer needs to receive events (e.g., in OnDestroy or OnDisable).

// File: GameEventSubscriberExample.cs
using System;
using Soar.Events;
using UnityEngine;

public class GameEventSubscriberExample : MonoBehaviour
{
    [SerializeField] private GameEvent gameEvent;

    private IDisposable subscription;

    private void Start()
    {
        subscription = gameEvent.Subscribe(OnGameEventRaised);
    }

    private void OnGameEventRaised()
    {
        Debug.Log($"Game Event {gameEvent.name} Received.");
    }

    private void OnDestroy()
    {
        subscription?.Dispose();
    }
}

GameEvent<T> (With Data)

The generic GameEvent<T> class allows creating events that carry a data payload of a specific type T.

Creating a Typed GameEvent

SOAR provides some common typed GameEvents (e.g., IntGameEvent, StringGameEvent) that can be created from the menu. Custom typed GameEvents can be created by inheriting from GameEvent<T>:

// File: MyCustomDataGameEvent.cs
using System;
using Soar;
using Soar.Events;
using UnityEngine;

// Define custom data structure
[Serializable]
public struct MyCustomData
{
    public int id;
    public string message;
}

// Create a new GameEvent asset type for MyCustomData
[CreateAssetMenu(fileName = "MyCustomDataGameEvent", menuName = MenuHelper.DefaultGameEventMenu + "My Custom Data GameEvent")]
public class MyCustomDataGameEvent : GameEvent<MyCustomData> { }

Then, an asset of this type can be created from Create > SOAR > Game Events > My Custom Data GameEvent.

Raising a Typed Event

Call Raise(T value) with the data payload.

// File: MyCustomDataGameEvent.cs
using UnityEngine;

public class MyTypedPublisher : MonoBehaviour
{
    [SerializeField] private MyCustomDataGameEvent onDataPublished;

    private void Update()
    {
        if (Input.GetKeyDown(KeyCode.Space))
        {
            var data = new MyCustomData { id = 1, message = "Hello World" };
            onDataPublished.Raise(data);
        }
    }
}

Subscribing to a Typed Event

Subscribe with an Action<T> to receive the data.

// File: MyTypedSubscriber.cs
using System;
using UnityEngine;

public class MyTypedSubscriber : MonoBehaviour
{
    [SerializeField] private MyCustomDataGameEvent gameEvent;

    private IDisposable subscription;

    private void Start()
    {
        subscription = gameEvent.Subscribe(HandlePublishedData);
    }

    private void HandlePublishedData(MyCustomData data)
    {
        Debug.Log($"Data received: ID={data.id}, Message='{data.message}'");
    }

    private void OnDestroy()
    {
        subscription?.Dispose();
    }
}

The GameEvent<T> also has a value field that stores the last raised value. This value is reset to default(T) when the application quits or when domain reload is disabled and play mode is exited.

R3 Integration

When the R3 library is present, GameEvents are enhanced with powerful reactive and asynchronous capabilities.

• AsObservable(): Returns the event as an R3 Observable stream.
  • For a parameterless GameEvent, this returns an Observable<Unit>.
  • For a GameEvent<T>, it returns an Observable<T>.
• AsUnitObservable(): Specific to GameEvent<T>, this returns an Observable<Unit>, useful for when you only need to know that an event was raised, but not its value.
• EventAsync(): Returns a ValueTask (or ValueTask<T>) that completes the next time the event is raised.
• ToAsyncEnumerable(): Converts the event stream into an IAsyncEnumerable<T>, allowing it to be consumed in an await foreach loop.

Examples

Using AsObservable with GameEvent<T>:

using R3;
using Soar.Events;
using UnityEngine;

public class EventLogger : MonoBehaviour
{
    [SerializeField] private StringGameEvent onImportantEvent;

    void Start()
    {
        onImportantEvent.AsObservable()
            .Subscribe(message => Debug.Log($"Event received: {message}"))
            .AddTo(this);
    }
}

Awaiting a GameEvent:

using Soar.Events;
using UnityEngine;

public class LevelManager : MonoBehaviour
{
    [SerializeField] private GameEvent onPlayerReady;

    private async void Start()
    {
        Debug.Log("Waiting for player to be ready...");
        await onPlayerReady.EventAsync();
        Debug.Log("Player is ready! Starting level.");
    }
}

Editor Integration

GameEvent assets have a custom editor inspector.

• Raise Button: A "Raise" button is available in the Inspector for all GameEvents. Clicking this button will call the Raise() method on the event, which is useful for debugging and testing event responses in both Edit Mode and Play Mode.

• Value Display (for GameEvent<T>): For typed GameEvent<T>, the current value (or the properties of the value if it's a complex type) is displayed in the Inspector, which allows for viewing and sometimes modifying the data that will be raised if the "Raise" button is pressed without providing a new value.

Lifecycle and Disposal

GameEvents are ScriptableObjects and implement IDisposable.

• Subscriptions are managed internally. When a GameEvent is disposed (which happens as part of the SoarCore lifecycle, typically on application quit), its subscriptions are cleared.
• For the independent implementation (when SOAR_R3 is not defined), subscriptions are stored in a list and disposed of.
• When SOAR_R3 is defined, GameEvents use R3 Subjects internally, and disposal is handled by disposing of the Subject.
• The SoarCore base class handles initialization and cleanup, including calling Dispose() during OnQuit. It also manages behavior related to Unity's "Enter Play Mode Options" (like Disable Domain Reload).

This ensures that resources are cleaned up correctly and event listeners do not attempt to operate on disposed objects.

Sample Usage

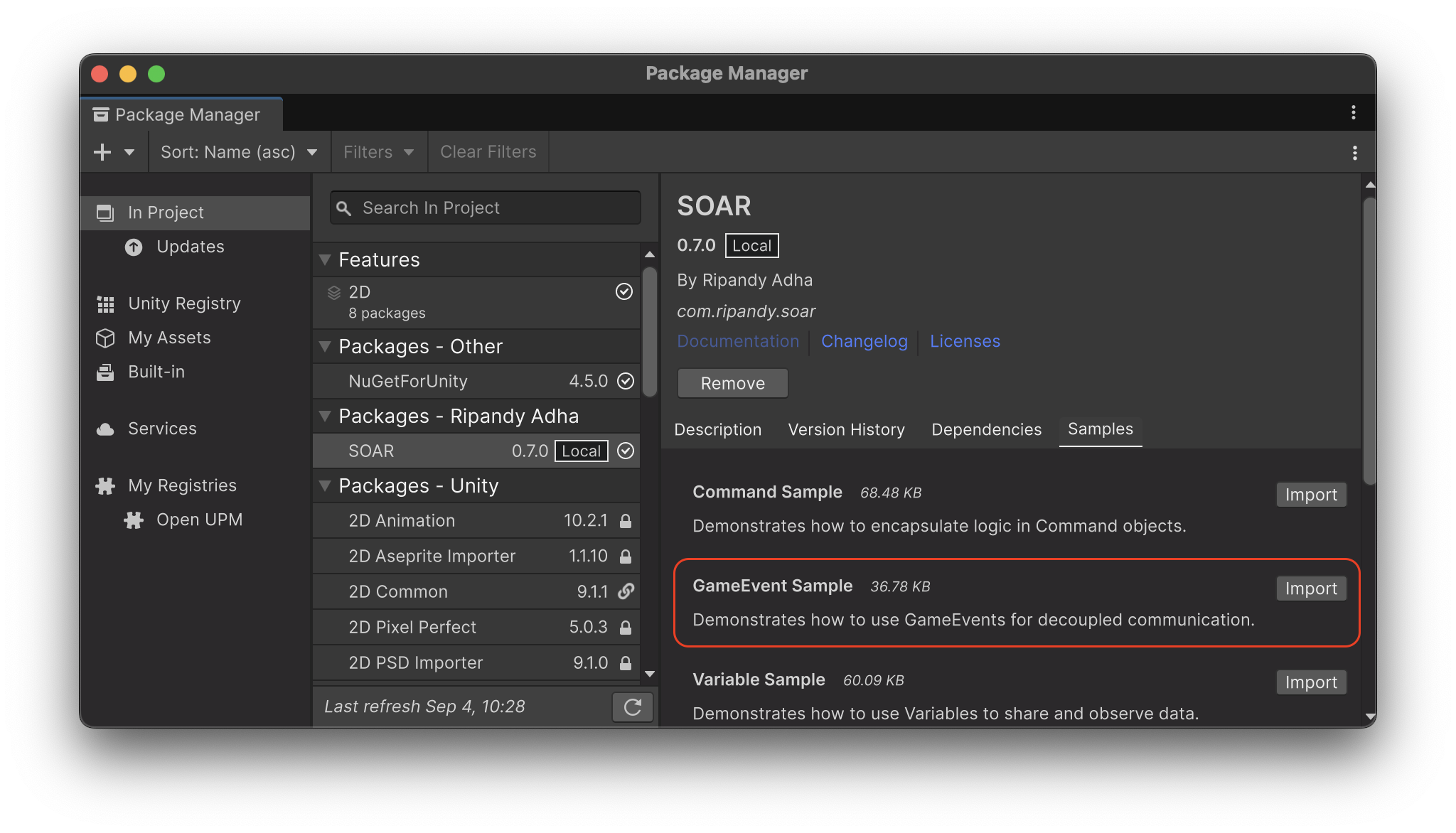

To test this feature, the relevant sample package can be imported from the Package Manager window.

The GameEvent Sample demonstrates how a UI Button can raise a GameEvent to communicate with a listener component without a direct reference. The listener then updates a UI Text element in response.

For detailed setup and usage instructions, please refer to the README.md file inside the GameEventSamples folder after importing.

Special GameEvents

BoolGameEvent

The BoolGameEvent has a RaiseToggled() method that raises the event with the opposite of the current value.
