Transaction

A Transaction is a two-way event that facilitates a request-response communication pattern using ScriptableObject assets. When a request is sent, a registered response handler processes it and returns a result to the requester. This is ideal for operations that require confirmation or a result, such as fetching data from a service or validating a user action. Only one response handler can be registered at a time.

Core Concepts

A Transaction's workflow involves three main parts: a Request, a Response, and optional Subscriptions.

• Request: A system initiates a transaction by making a request. This can optionally include input data and a callback for the response. If no responder is currently registered, requests are queued until one becomes available.
• Response: The logic that handles a request and produces a result, which can be synchronous or asynchronous. Only one responder can be registered at a time; registering a new one replaces the previous. When a responder is registered, it immediately processes all queued requests in order.
• Subscription: Observers can subscribe to requests or responses to trigger reactive logic without participating directly in the transaction.

This pattern ensures that the requester and responder are decoupled. They only need a shared reference to the Transaction asset to communicate.

Transaction (Parameterless)

The base Transaction class manages interactions that do not involve data exchange. It's useful for simple signaling where the requester needs to know that an action has been completed.

Creating a Parameterless Transaction

An instance of the base Transaction can be created directly from the Assets > Create > SOAR > Transactions > Transaction menu.

If a more specific, namespace or named transaction is preferred, a custom class can be created by inheriting from the base Transaction class:

// File: MySimpleTransaction.cs
using Soar;
using Soar.Transactions;
using UnityEngine;

[CreateAssetMenu(fileName = "MySimpleTransaction", menuName = MenuHelper.DefaultTransactionMenu + "My Simple Transaction")]
public class MySimpleTransaction : Transaction {}

Registering Response

A Transaction needs a registered response to process requests. A response can be registered in two ways: internally within the Transaction's class definition, or externally from another script.

• Internal Registration: The RegisterResponseInternal() method can be overridden in a class inheriting from Transaction to define its default behavior. This response is automatically registered when the asset is initialized.

// File: MyInternallyHandledTransaction.cs
using Soar;
using Soar.Transactions;
using UnityEngine;

[CreateAssetMenu(fileName = "MyInternallyHandledTransaction", menuName = MenuHelper.DefaultTransactionMenu + "My Internally Handled Transaction")]
public class MyInternallyHandledTransaction : Transaction
{
    protected override void RegisterResponseInternal()
    {
        RegisterResponse(() => Debug.Log("Internal response executed!"));
    }
}

• External Registration: The RegisterResponse() method can be called from any script to set or override the transaction's behavior at runtime. This is useful for dynamic scenarios where the response logic might change. Both synchronous (Action) and asynchronous (Func<ValueTask>) responses are supported.

// File: TransactionResponder.cs
using Soar.Transactions;
using UnityEngine;
using System.Threading.Tasks;

public class TransactionResponder : MonoBehaviour
{
    [SerializeField] private Transaction myTransaction;

    private void Start()
    {
        // Register a synchronous response
        myTransaction.RegisterResponse(HandleSyncResponse);

        // Or, register an asynchronous response
        // myTransaction.RegisterResponse(HandleAsyncResponse);
    }

    private void OnDestroy()
    {
        myTransaction.UnregisterResponse();
    }

    private void HandleSyncResponse()
    {
        Debug.Log("External synchronous response executed!");
    }

    private async ValueTask HandleAsyncResponse()
    {
        Debug.Log("Async response started...");
        await Task.Delay(1000); // Simulate work
        Debug.Log("Async response finished.");
    }
}

Requesting

A transaction is requested by calling Request(Action onResponse) for callback-based requests. The registered response logic is invoked when a request is made.

// File: TransactionUserExample.cs
using Soar.Transactions;
using UnityEngine;

public class TransactionUserExample : MonoBehaviour
{
    [SerializeField] private Transaction myTransaction;

    private void Start()
    {
        myTransaction.Request(() => Debug.Log("Transaction completed!"));
    }
}

For asynchronous requests, use RequestAsync() which returns a ValueTask that can be awaited.

// File: AsyncTransactionUserExample.cs
using Soar.Transactions;
using UnityEngine;

public class AsyncTransactionUserExample : MonoBehaviour
{
    [SerializeField] private Transaction myTransaction;

    private async void Start()
    {
        await myTransaction.RequestAsync();
        Debug.Log("Async transaction completed!");
    }
}

Transaction<TRequest, TResponse> (Typed)

The generic Transaction<TRequest, TResponse> class allows for transactions with input and output values.

Transaction<T> (Symmetric Typed)

For convenience, SOAR provides the Transaction<T> base class, which is a shorthand for Transaction<T, T>. This is useful for scenarios where the request and response data share the same type, such as an operation that takes a value, modifies it, and returns it.

// File: ModifyNumberTransaction.cs
using Soar;
using Soar.Transactions;
using UnityEngine;

[CreateAssetMenu(fileName = "ModifyNumberTransaction", menuName = MenuHelper.DefaultTransactionMenu + "Modify Number Transaction")]
public class ModifyNumberTransaction : Transaction<int> // Inherits from Transaction<int, int>
{
    protected override void RegisterResponseInternal()
    {
        RegisterResponse(request => request * 2);
    }
}

Creating a Typed Transaction

A custom transaction can be created by inheriting from Transaction<TRequest, TResponse> and implementing the response logic.

// File: IntToStringTransaction.cs
using Soar;
using Soar.Transactions;
using UnityEngine;

[CreateAssetMenu(fileName = "IntToStringTransaction", menuName = MenuHelper.DefaultTransactionMenu + "Int To String Transaction")]
public class IntToStringTransaction : Transaction<int, string>
{
    protected override void RegisterResponseInternal()
    {
        RegisterResponse(request => $"Value is {request}");
    }
}

Requesting with Values

A typed transaction is requested by calling Request(TRequest, Action<TResponse>) for callback-based requests.

// File: TypedTransactionUserExample.cs
using Soar.Transactions;
using UnityEngine;

public class TypedTransactionUserExample : MonoBehaviour
{
    [SerializeField] private IntToStringTransaction intToStringTransaction;

    private void Start()
    {
        intToStringTransaction.Request(42, response => Debug.Log(response));
    }
}

For asynchronous requests, use RequestAsync(TRequest), which returns a ValueTask<TResponse> that can be awaited.

// File: AsyncTypedTransactionUserExample.cs
using Soar.Transactions;
using UnityEngine;

public class AsyncTypedTransactionUserExample : MonoBehaviour
{
    [SerializeField] private IntToStringTransaction intToStringTransaction;

    private async void Start()
    {
        var result = await intToStringTransaction.RequestAsync(99);
        Debug.Log($"Async result: {result}");
    }
}

Subscribing to Requests and Responses

Transactions provide subscription methods to observe when requests or responses occur. Subscriptions should be disposed of when no longer needed.

// File: TransactionMonitor.cs
using System;
using Soar.Transactions;
using UnityEngine;

public class TransactionMonitor : MonoBehaviour
{
    [SerializeField] private Transaction transaction;

    private IDisposable requestSubscription;
    private IDisposable responseSubscription;

    private void Start()
    {
        requestSubscription = transaction.SubscribeToRequest(() => Debug.Log("Request made"));
        responseSubscription = transaction.SubscribeToResponse(() => Debug.Log("Response made"));
    }

    private void OnDestroy()
    {
        requestSubscription?.Dispose();
        responseSubscription?.Dispose();
    }
}

For typed transactions:

// File: TypedTransactionMonitor.cs
using System;
using Soar.Transactions;
using UnityEngine;

public class TypedTransactionMonitor : MonoBehaviour
{
    [SerializeField] private IntToStringTransaction transaction;

    private IDisposable requestSubscription;
    private IDisposable responseSubscription;

    private void Start()
    {
        requestSubscription = transaction.SubscribeToRequest(request => Debug.Log($"Requested: {request}"));
        responseSubscription = transaction.SubscribeToResponse(response => Debug.Log($"Responded: {response}"));
    }

    private void OnDestroy()
    {
        requestSubscription?.Dispose();
        responseSubscription?.Dispose();
    }
}

R3 Integration

When the R3 library is present, Transactions are supercharged with robust tools for handling asynchronous request-response cycles and managing concurrency.

• AsRequestObservable() / AsResponseObservable(): These methods return Observable streams that allow you to reactively listen for when requests are made or when responses are returned.
• RequestAsync(): This is the primary method for making asynchronous requests. It returns a ValueTask (or ValueTask<TResponse>) that completes when the registered response handler finishes its work.
• Asynchronous RegisterResponse: The most powerful feature is the ability to register async methods as response handlers. You can use Func<ValueTask>, Func<TRequest, ValueTask<TResponse>>, and other async delegates.

Concurrency with AwaitOperation

When registering an asynchronous response, you can specify an AwaitOperation to control how the Transaction behaves if multiple requests arrive while a response is still being processed.

• Parallel: (Default) Processes all incoming requests concurrently.
• Sequential: Queues incoming requests and processes them one at a time.
• Drop: If a request is already in progress, new requests are ignored.
• Switch: If a new request arrives, the previous, unfinished request is cancelled.
• ThrottleFirst: Throttles requests, allowing only the first one in a given time window.

Example

// File: MyAsyncService.cs
using Soar.Transactions;
using System.Threading.Tasks;
using UnityEngine;

public class MyAsyncService : MonoBehaviour
{
    [SerializeField] private StringTransaction fetchDataTransaction;

    void Start()
    {
        // Register an async response handler that simulates a web request
        fetchDataTransaction.RegisterResponse(async (request) =>
        {
            Debug.Log($"Fetching data for: {request}...");
            await Task.Delay(1000); // Simulate network latency
            return $"Data for {request}";
        }, R3.AwaitOperation.Sequential); // Process requests one by one
    }
}

Editor Integration

Transactions have custom inspectors in the Unity Editor.

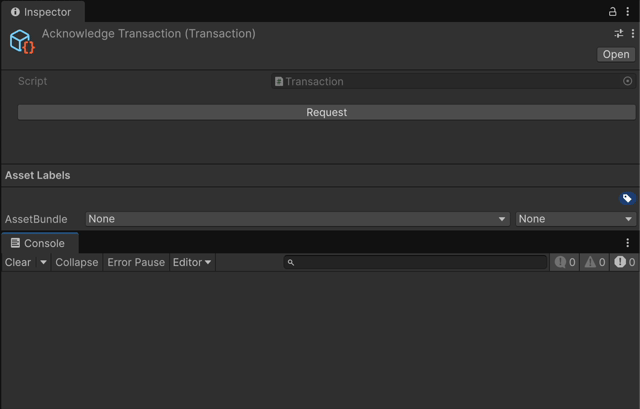

• Request Button: A "Request" button is available in the Inspector for all Transaction assets. Clicking this button will trigger a request, useful for testing and debugging.

• Dummy Response Handler: Upon requests, when there are no response handler registered in the Transaction, a dummy response handler will temporarily registered. This ensures that requests made on the editor be responded properly.

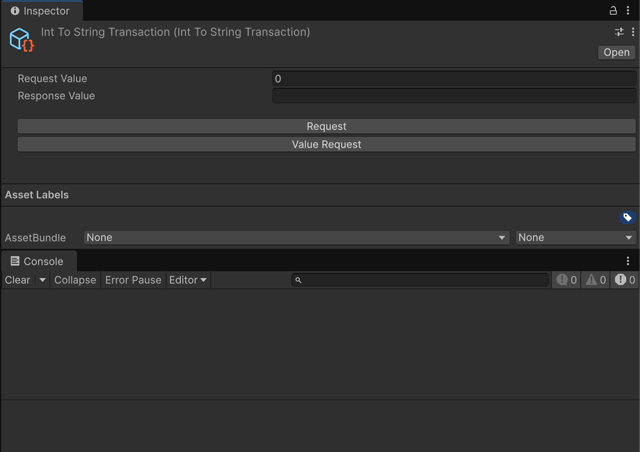

• Value Display: For typed transactions, the current request and response values are displayed in the Inspector.

• Value Request Button: For typed transactions, you can also request with current request value displayed in the inspector.

Lifecycle and Disposal

Transactions are ScriptableObjects and implement IDisposable.

• Initialization: On enable, transactions register their internal response handler (if any), and clear pending requests.
• Disposal: On application quit or domain reload (when enabled), transactions dispose of subscriptions and clear requests to prevent memory leaks.
• Reset: The ResetResponseInternal() method can be called to reset the registered response to its default implementation.

Use Cases

Transactions are suitable for scenarios requiring decoupled request-response flows, such as:

• Service Calls: Encapsulating backend or service requests with asynchronous responses.
• Game Logic: Handling operations like purchasing, saving, or loading with confirmation callbacks.
• Editor Tools: Triggering and observing operations from the Unity Editor for debugging or automation.

By using transactions, systems can communicate in a modular, testable, and reactive manner, supporting both synchronous and asynchronous workflows.

Sample Usage

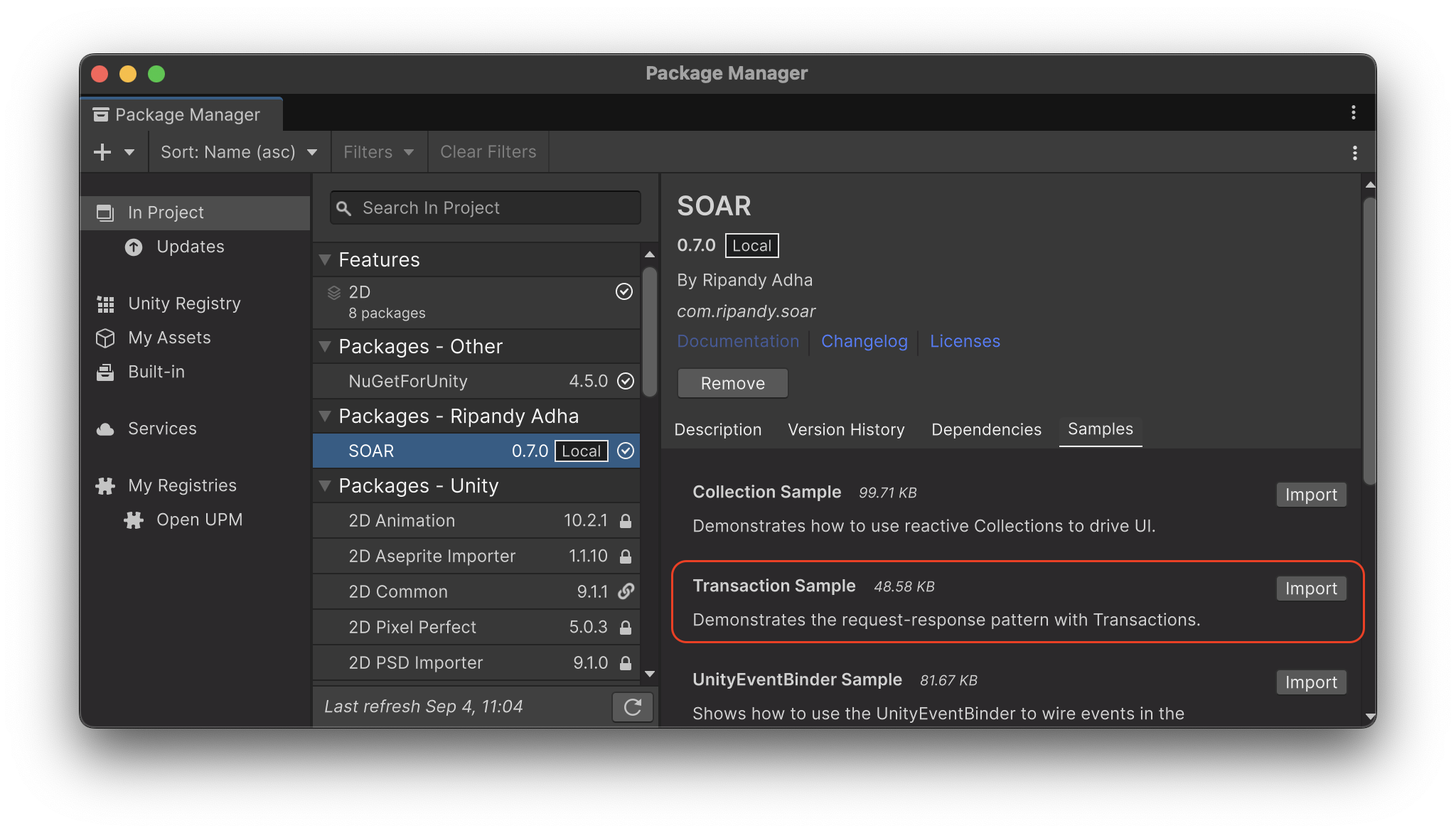

To test this feature, the relevant sample package can be imported from the Package Manager window.

The Transaction Sample demonstrates the full request-response-subscribe lifecycle. It includes a requester that simulates a long-running process, a responder that handles the request, and observer components that log when the request and response occur.

For detailed setup and usage instructions, please refer to the README.md file inside the TransactionSamples folder after importing.
