Unity Event Binder

The UnityEventBinder is a crucial MonoBehaviour component that bridges the gap between SOAR's GameEvents and Unity's built-in UnityEvent system. Often called an "Event Listener," it listens for a GameEvent asset and, in response, invokes a UnityEvent, allowing for game logic to be wired up directly in the Inspector without code.

Core Concept

The UnityEventBinder is a MonoBehaviour that is attached to a GameObject in a scene. It has two main purposes:

1. Listen to a GameEvent: A specific GameEvent asset is assigned to the binder.
2. Trigger a UnityEvent: When the specified GameEvent is raised, the binder invokes a UnityEvent that can be configured in the Inspector.

This creates a powerful and decoupled workflow. The object raising the GameEvent doesn't need to know anything about the objects that will react to it, and vice-versa.

UnityEventBinder (for parameterless GameEvents)

The non-generic UnityEventBinder is used for GameEvents that do not carry any data.

How to Use

1. Add the Component: A GameObject in a scene is selected and the UnityEventBinder component is added to it (Add Component > SOAR > Unity Event Binder).

2. Assign the GameEvent: In the Inspector, a parameterless GameEvent asset is dragged and dropped into the Game Event To Listen field.



3. Configure the UnityEvent: The On Game Event Raised UnityEvent is configured. GameObjects or components can be dragged into the event slot and a public method can be selected to be called when the event is raised.



Now, whenever the assigned GameEvent is raised (from a script, another UnityEvent, or the Inspector), the UnityEventBinder will invoke the configured methods.

UnityEventBinder<T> (for GameEvents with data)

The generic UnityEventBinder<T> is used for GameEvent<T>s that carry a data payload. SOAR provides a set of pre-built binders for common types.

Pre-built Binders

Pre-built binders for various types can be found under Add Component > SOAR > Unity Event Binders:

• BoolUnityEventBinder
• ByteUnityEventBinder
• DoubleUnityEventBinder
• FloatUnityEventBinder
• IntUnityEventBinder
• LongUnityEventBinder
• StringUnityEventBinder
• PoseUnityEventBinder
• QuaternionUnityEventBinder
• Vector2UnityEventBinder
• Vector3UnityEventBinder

How to Use Typed Binders

The process is similar to the parameterless binder, but with a typed UnityEvent:

1. Add a Typed Binder: A specific typed binder is added to a GameObject (e.g., Vector3UnityEventBinder).

2. Assign the Typed GameEvent: A corresponding typed GameEvent<T> asset is assigned (e.g., a Vector3Variable, as Variable<T> derived from GameEvent<T>).

3. Configure the Typed UnityEvent: The Inspector will show a On Typed Game Event Raised (T) event (e.g., On Typed Game Event Raised (Vector3)). This is a UnityEvent<T> that can pass the event's data payload directly to the listening methods. Methods that accept a parameter of the corresponding type can be selected.

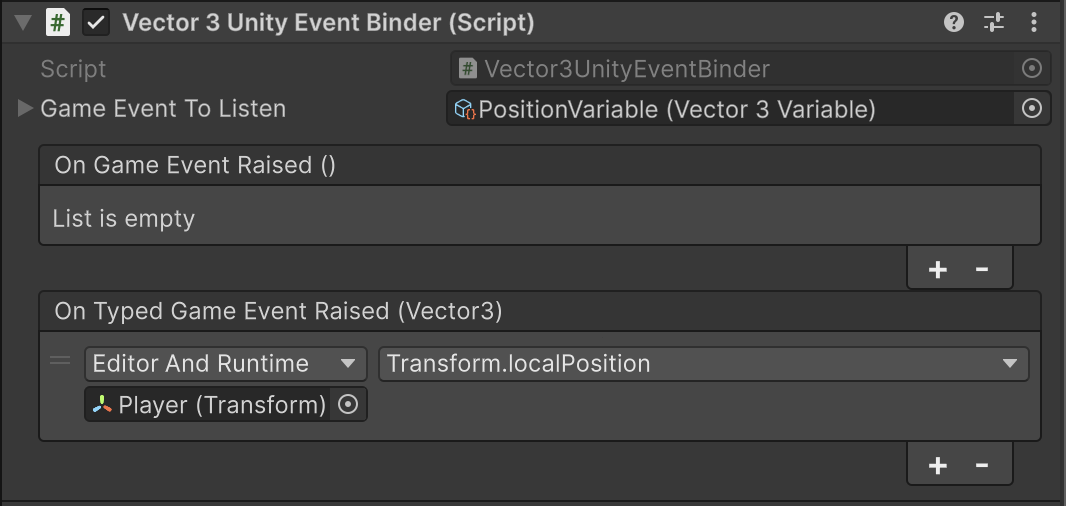

   For example, a Transform's localPosition can be linked directly to a Vector3UnityEventBinder's UnityEvent.



Special Binders

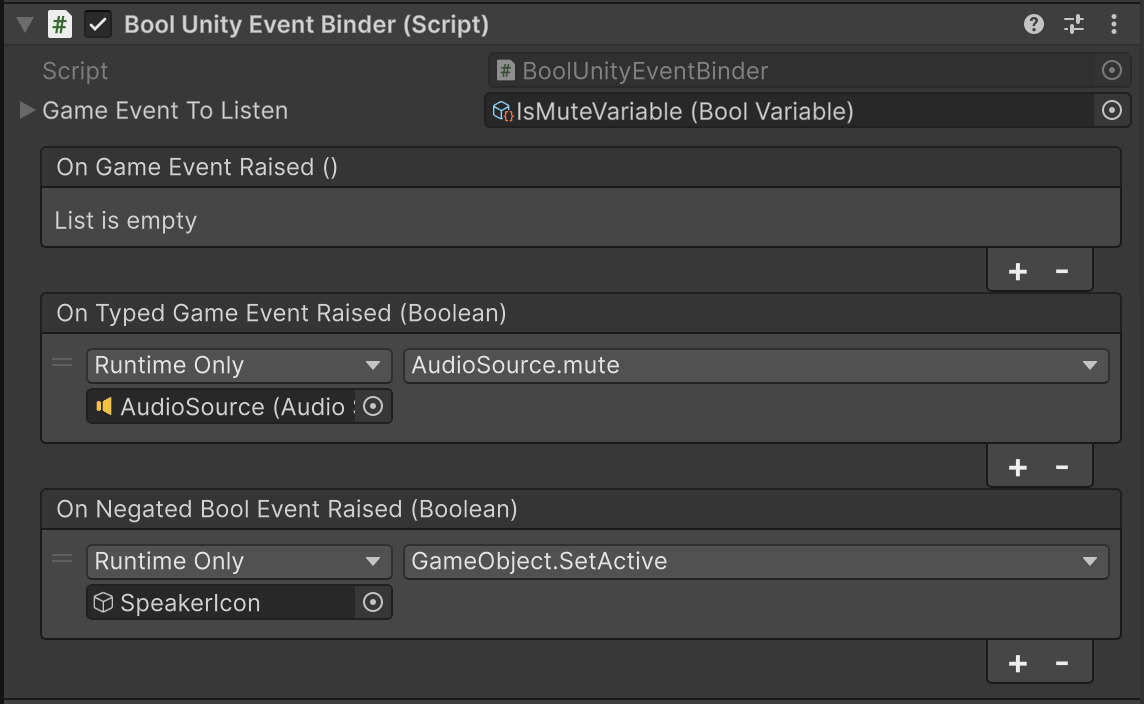

• BoolUnityEventBinder: In addition to the standard UnityEvent<bool>, this binder also provides an On Negated Bool Event Raised event that is invoked with the opposite boolean value.

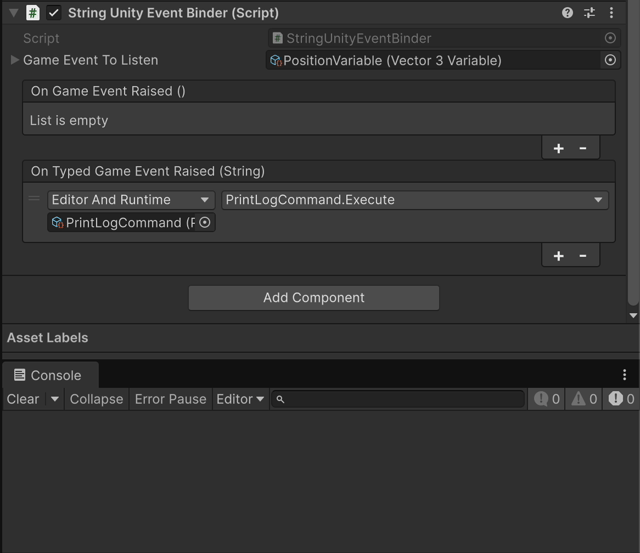

• StringUnityEventBinder: This binder has a special behavior where it can also be used with a parameterless GameEvent. In this case, it will invoke the UnityEvent<string> with the ToString() representation of the GameEvent object itself.



• UnityEventBatchBinder: This component allows you to listen to multiple GameEvents and invoke a single UnityEvent in response. This is useful when you have multiple events that should trigger the same response.

Creating Custom UnityEventBinder<T>

A custom typed UnityEventBinder can be created as necessary:

1. Define the Custom Data Type and GameEvent<T>: A [Serializable] data type and a corresponding GameEvent<T> class for it must be defined.

   // File: PlayerData.cs
   using System;

   [Serializable]
   public struct PlayerData
   {
       public string name;
       public int level;
   }

   // File: PlayerDataGameEvent.cs
   using Soar.Events;
   using UnityEngine;

   [CreateAssetMenu(fileName = "PlayerDataGameEvent", menuName = "SOAR/Game Events/Player Data GameEvent")]
   public class PlayerDataGameEvent : GameEvent<PlayerData> { }


2. Create the Custom Binder Class: A new class that inherits from UnityEventBinder<T> is created, specifying the custom type.

   // File: PlayerDataUnityEventBinder.cs
   using Soar.Events;

   public class PlayerDataUnityEventBinder : UnityEventBinder<PlayerData> { }


The UnityEventBinder<T> base class handles all the logic. The PlayerDataUnityEventBinder component can now be added to a GameObject and used to listen for PlayerDataGameEvents.

Lifecycle

The UnityEventBinder automatically handles subscribing to the GameEvent in its Start() method and unsubscribing in its OnDestroy() method. This ensures that there are no memory leaks from lingering subscriptions when the GameObject is destroyed.

Sample Usage

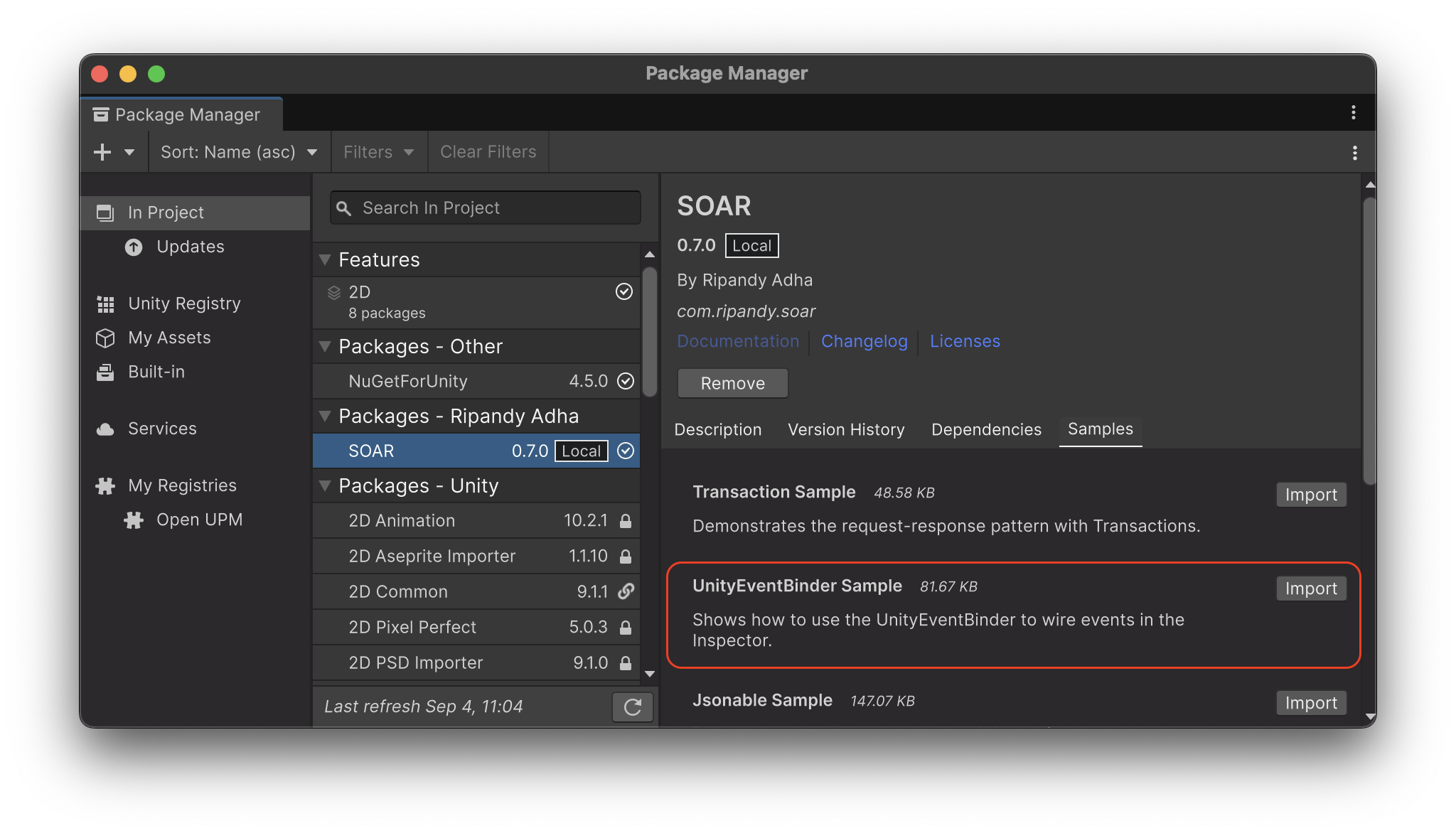

To test this feature, the relevant sample package can be imported from the Package Manager window.

The UnityEventBinder Sample demonstrates how a UnityEventBinder can listen for a GameEvent and trigger a UnityEvent in response, all configured in the Inspector. This allows for codeless wiring of events to component methods.

For detailed setup and usage instructions, please refer to the README.md file inside the UnityEventBinderSamples folder after importing.
